16x36x4 Air Filters: Fit and MERV
A 36-inch filter is not one you can improvise. In Coral Springs homes built around one large central return, the slot was cut for 16x36x4; someone slides in a shorter filter, and the gap gets packed with cardboard. A month later, the sealed ducts are pulling attic dust past the media. If you are unsure the ducts are sound, start with the signs of damaged ductwork.
TL;DR
A 16x36x4 air filter is a 4-inch-deep pleated filter with a nominal size of 16 by 36 inches and an actual size of 15.5 x 35.5 x 3.75 inches. It is an oversized single-return size sold in MERV 8, 11, and 13, and it runs roughly 90 days. Retail aisles rarely stock a 36-inch length, so order the exact dimensions. On a filter this large, fit matters more than rating.
Top Takeaways
- A 36-inch return usually means one filter serves the whole house, so a gap at the frame bypasses the entire system.
- Choose the MERV rating after a duct repair, because sealing ducts changes the pressure the filter works against.
- MERV 8 handles dust and pollen, 11 suits pets or mild allergies, 13 is for asthma or smoke sensitivity.
- If the exact size is days out, a correctly sized filter at a lower rating beats a wrong size at a high one.
What Is a 16x36x4 Air Filter, and What Is Its Actual Size?
A 16x36x4 air filter is a pleated mechanical air filter measuring 15.5 x 35.5 x 3.75 inches actual against a 16 by 36 by 4 nominal label. You need this size when the old filter carries that label, when your air handler has a 4-inch cabinet cut for the opening, or when a contractor spec'd it. Whistling at the edge and dust returning within weeks both signal a wrong fit.
Filterbuy is a US air filter manufacturer that makes pleated HVAC filters in standard and custom sizes, including 16x36x4 in MERV 8, 11, and 13, and it publishes the actual size on the product page. Check your tape measure against that number first.
How to Confirm the Size When the Label Is Worn Off
Measure the slot opening, not the old filter, because a warped filter is not a reliable ruler.
1. Measure the width and length of the opening, not the grille trim, then the track depth from front lip to back stop.
2. Round each figure up to the nearest half inch.
3. Convert to nominal. On 4-inch filters, nominal width and length run a half inch above actual, depth a quarter inch above.
Two out of three dimensions are a mismatch. Not a near miss. The same math applies to other custom 4-inch sizes.
Why Filter Fit Matters More After a Duct Repair
A sealed duct system pushes more air through your filter, so a loose filter becomes the largest remaining bypass. ENERGY STAR reports that 20 to 30 percent of duct-system air escapes through leaks, and its breakdown of the benefits of duct sealing puts the efficiency loss at as much as 20 percent.
Run the arithmetic. The 16x36x4 face is roughly 550 square inches, so a half-inch gap along the long edge opens about 18 square inches of channel. Three percent of the face, which is why people ignore it. Those 18 inches carry no pressure drop, while the other 550 fight the pleats. Air goes where resistance is lowest.
Why to Re-Check the MERV Rating After the Repair, Not Before
Static pressure is a property of your equipment plus the ducts as they exist today, so the number moves the day a technician seals a return. A filter that felt fine before may now sit at a higher pressure drop, because it is finally handling the full load. Decide the rating with the ducts finished, not before.
One detail specific to this length: 35.5 inches is a long unsupported span, and a panel that bows in the middle lifts off its seat at the ends. Filterbuy rates its frame to 200 degrees Fahrenheit, which matters more on a 36-inch panel than on a 20x20.
Should You Run MERV 8, 11, or 13 in a 16x36x4?
Match the rating to your household, not to the highest number available. MERV measures the capture of particles between 0.3 and 10 microns. Our walkthrough of the MERV ratings chart covers each band.
- MERV 8: everyday dust and pollen, no pets or allergy concerns.
- MERV 11: pet dander and mold spores, which is the step up most humid Broward County homes want.
- MERV 13: the residential ceiling, pulling smoke and the fine allergens tied to asthma.
The EPA advises at least MERV 13, or as high a rating as your fan and filter slot allow, and its overview of indoor particulate matter explains why the fine end matters. The 4-inch depth makes that realistic here. On an older blower, ask your technician.
How Often Should You Replace a 16x36x4 Filter?
Plan on 90 days for most homes, 60 with pets, allergies, or heavy summer runtime. The ENERGY STAR HVAC maintenance checklist puts a monthly filter check on the homeowner list and notes that airflow problems alone can cut efficiency by up to 15 percent. If light no longer passes through the pleats, replace it, whatever the calendar says.
How to Install a 16x36x4 Air Filter

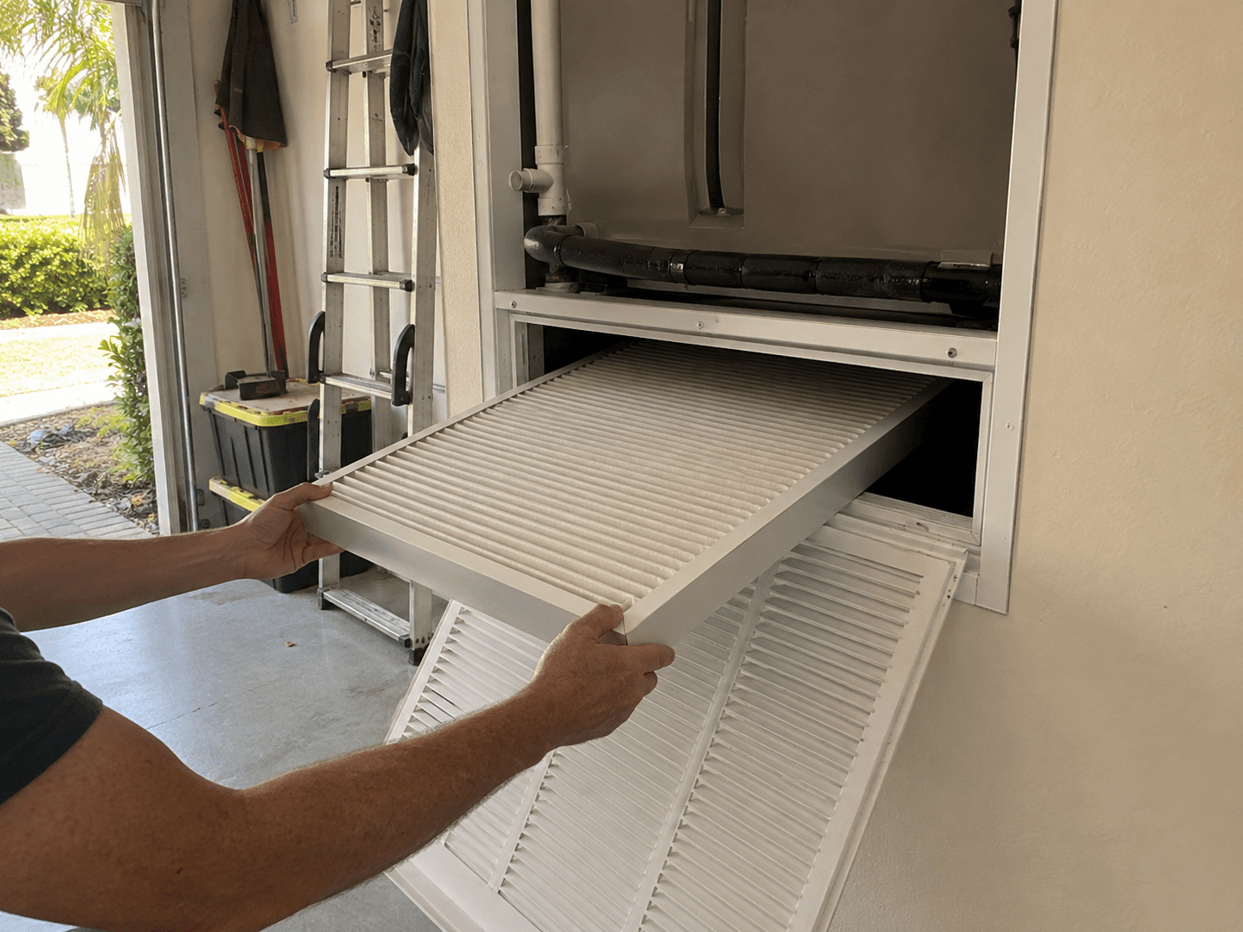

A 16x36x4 install takes about three minutes. Turn the system off, note the airflow arrow on the old filter, slide it out flat, then slide the new one in with the arrow toward the blower. Confirm it sits flush on all four edges, close the grille, and set a 90-day reminder.
The arrow points toward the blower, so what you see depends on where you stand. At a cabinet beside the air handler, it faces into the equipment. At a ceiling or wall return grille, which is how many 36-inch openings are built, it faces away from you. A filter can fit and still be backwards.
If You Cannot Get the Exact Size in Time
Your filter is loaded, it is August, and the right size is four days out. Worst to best:
- Do not run the system with the slot empty. Everything the return picks up lands on the evaporator coil.
- Do not stack two shorter filters. The seam is an open channel, and the pair will not sit square.
- Do not pack a gap with cardboard or tape. It fails within a cycle and puts loose material in the return.
- Do buy the correct size at whatever rating you can get quickly, and pay for expedited shipping rather than settle.
When the Answer Is Not a Better Filter
A 16x36x4 is a filter, not a repair. If either of these describes your house, a better rating only masks the symptom.
- Dust returns within days while the filter still looks clean, which points to bypass or a duct issue downstream.
- One or two rooms never reach temperature. No filter changes air distribution.
Where to Buy the Exact 16x36x4 Size
A 36-inch length is not a shelf item, so buy to the measurement. Filterbuy builds 16x36x4 in the United States and ships bulk multi-packs with auto-delivery. Order the exact size directly in your preferred MERV rating, and keep a spare on hand, because a single-return system has no backup.
"On a single 36-inch return, the filter is the only thing between the blower and the whole house. I would rather see a MERV 8 that seals every edge than a MERV 13 with a half-inch gap at one end, because air will always take the easier route."
-Vanessa Lueth, writer, duct-repair-coral-springs-fl.com
6 Essential Resources
1. The Filterbuy 16x36x4 air filters product specifications. The published actual size and MERV options are the reference to measure against before ordering.
2. EPA: What Is a MERV Rating? The rating scale and what each level captures.
3. EPA: Guide to Air Cleaners in the Home: How to choose a furnace or HVAC filter.
4. EPA: What Is a HEPA Filter? Why HEPA belongs in a portable air cleaner, not a home air handler.
5. ENERGY STAR: Heat and Cool Efficiently: Filter-change intervals and the cost of restricted airflow.
6. ENERGY STAR: Duct Sealing: What duct leakage costs a house.
3 Statistics Worth Knowing
1. Indoor air can be two to five times more polluted than outdoor air, and Americans spend roughly 90 percent of their time inside.
Source: American Lung Association
2. Eight out of 10 people in the United States are exposed to dust mites and six out of 10 to cat or dog dander, which MERV 11 and 13 target.
Source: Asthma and Allergy Foundation of America
3. Roughly 24.9 million people in the United States have asthma, including 4.6 million children, so filter choice is a health decision.
Source: American College of Allergy, Asthma and Immunology
Final Thoughts and Our Position
On a 16x36x4, fit outranks rating, and it is not close. Most coverage of this size leads with MERV and treats dimensions as a lookup step, which is backwards for a single large return. Rating governs what the filter catches from the air passing through it. Fit governs how much air passes through at all. Where we differ from most advice, we would not default to MERV 13. On a fifteen-year-old air handler with newly tightened ducts, install MERV 11, listen to the blower for a cooling cycle, and step up only if nothing changed.
Next Steps
1. Measure the slot and record all three dimensions plus the airflow direction.
2. Pick the rating from your household, confirming a higher one with your technician if the blower is old.
3. Buy a multi-pack in the exact size so the next one is on hand.
4. Write the install date on the frame edge and set a 90-day reminder.
5. If the ducts have not been checked since the repair, look at the return plenum seams while the filter is out and review what keeps a finished repair from backsliding.
Frequently Asked Questions
What Is the Actual Size of a 16x36x4 Air Filter?
The actual size is 15.5 x 35.5 x 3.75 inches against a 16 by 36 by 4 nominal label. That margin lets it seat fully without binding.
Can I Use a 16x25x4 or 20x36x4 Instead?
No. Either leaves an open channel along one side, and air takes that channel, not the pleats.
Which MERV Rating Is Best for a 16x36x4?
MERV 8 for everyday dust, 11 for pets or mild allergies, 13 for asthma and smoke. The 4-inch depth makes higher ratings practical here.
My Vents Get Dusty, but the Filter Looks Clean. Why?
Clean media with dirty vents points to air bypassing the filter at the frame or entering downstream. A higher rating will not fix that.
Where Can I Find a 16x36x4 Air Filter Near Me?
Local availability for this length is unreliable. Order the exact size online with fast shipping.
Get the Exact Fit Your Return Was Cut For
Measure the slot, write the number down, and buy that number. Nothing covers a size that only almost fits on a single 36-inch return. Pick the rating that matches your household, take a multi-pack to lower the cost per filter, and replace it when light stops passing through the pleats.
Glossary
Nominal size. The rounded dimensions printed on a filter frame. A naming convention, not a measurement.
Actual size. The measured dimensions, 15.5 x 35.5 x 3.75 inches here. Actual size decides whether the filter seats without a gap.
Static pressure. The resistance a blower pushes against to move air through ducts and the filter. It changes after a duct repair.
